Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls

Carbide/PCD notching tools for milling HSS rolls/Carbide rolls sell well in Russia



Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图1)
Product Description

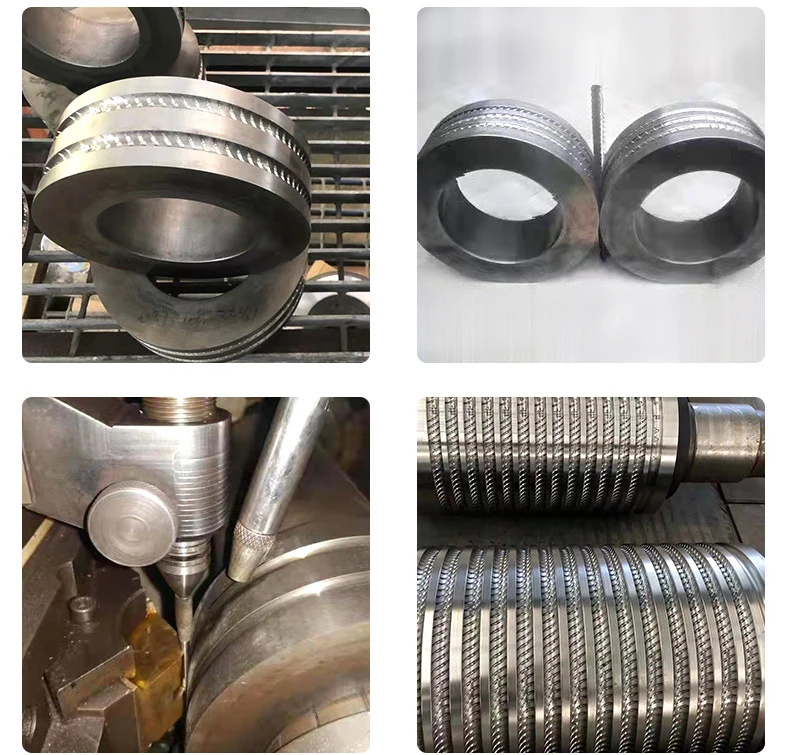

Carbide notching tool and PCD notching tool for milling HSS rolls and carbide rolls, Huamin can provide,It has the advantages of high efficiency, high wear resistance and long life.

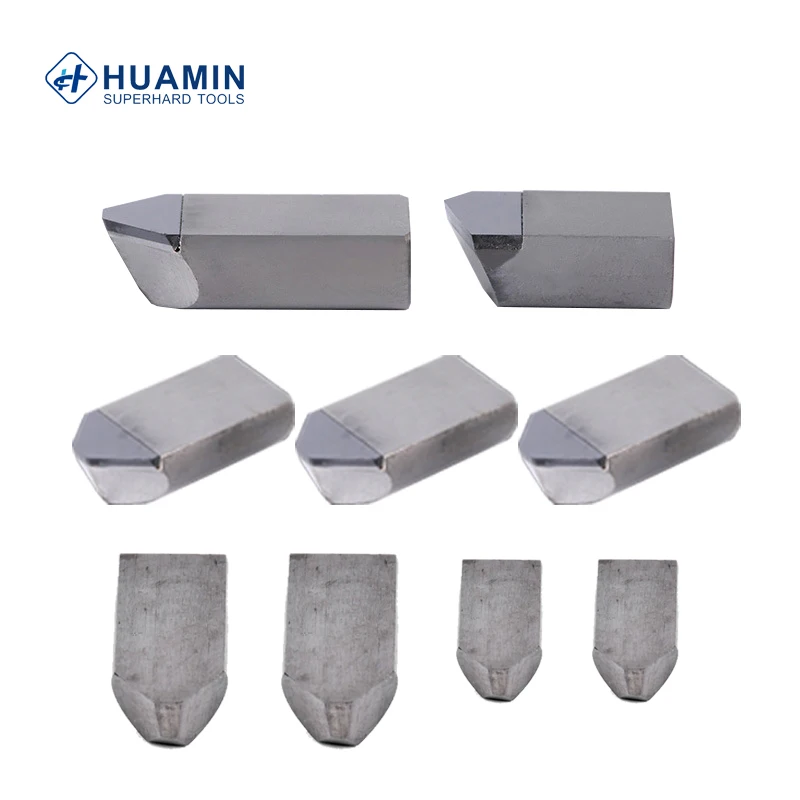

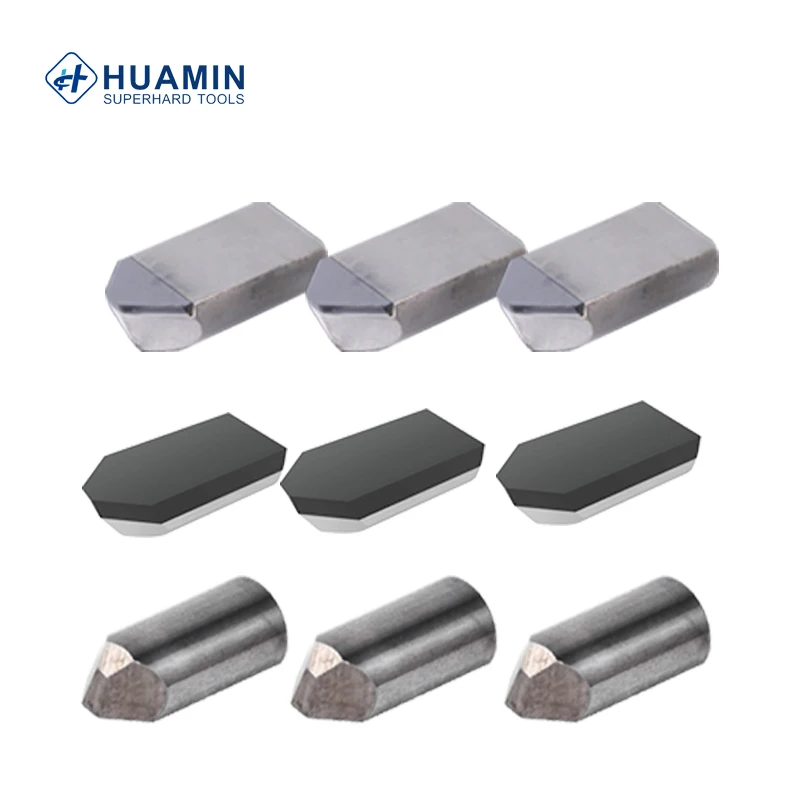

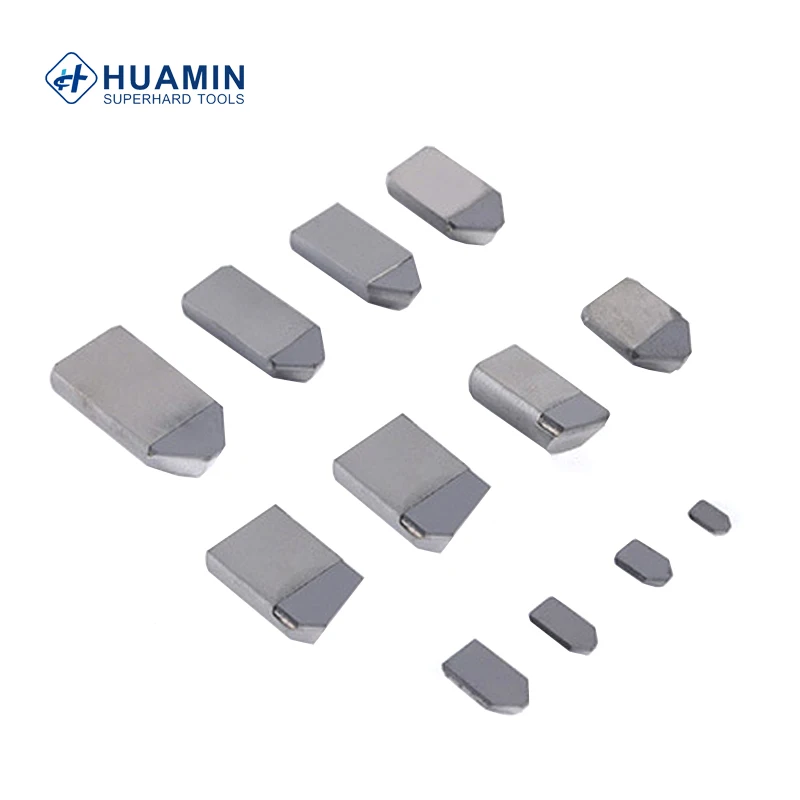

PCD notching tools have two structures, namely welding and full veneer, full veneer PCD notching tools are used for blades below 4mm, welded PCD notching tools are larger than 4mm, and only the cutting edge is PCD,The base is cemented carbide.

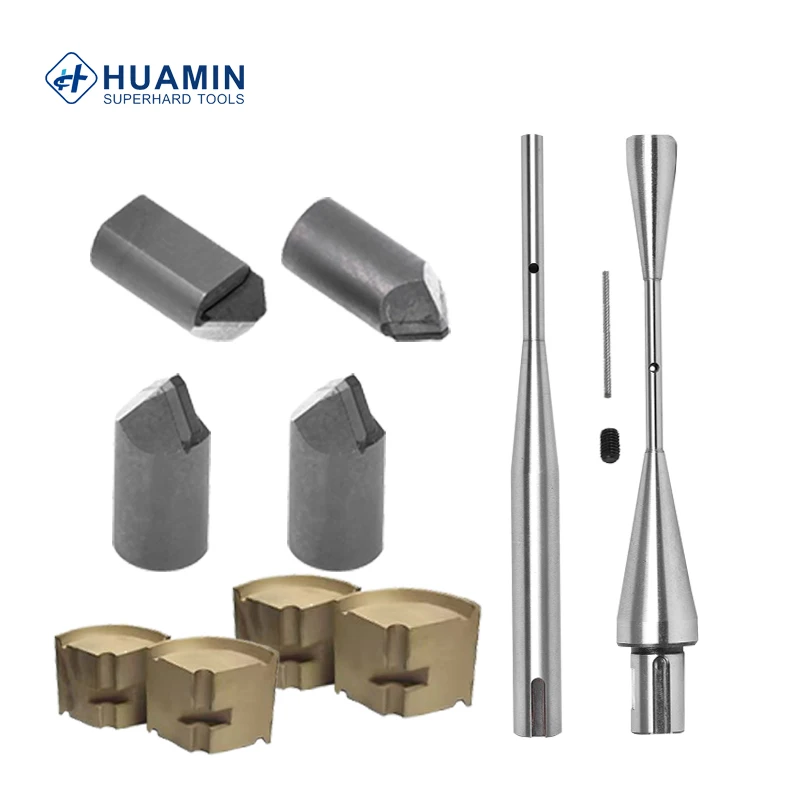

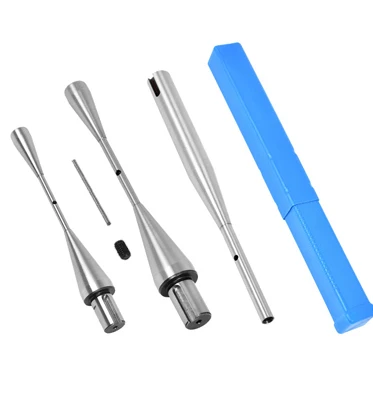

Huamin also provides ancillary products for carbide PCD notching tools, including milling tool holders and support blocks. At the same time, it provides customized services, which can be customized according to customer needs.welcome to contact.
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图2)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图3)
Product Paramenters
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图4)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图5)
Order No.
Dimension(mm)
ΦD
b
H
L
θ°
Φ2*0.4*4.06*80°
2.0
2
0.4
4.06
80°
Φ2.5*0.5*5.2*80°
2.5
2.5
0.5
5.2
80°
Φ3*0.6*5.5*80°
3.0
3
0.6
5.5
80°
Φ3.2*0.6*6.2*85°
3.2
3.2
0.6
6.2
85°
Φ4*0.6*7.53*80°
4.0
4
0.6
7.53
80°
Φ4*0.7*7.83*70°
4.0
4
0.7
7.83
70°
Φ4*0.8*9.55*80°
4.0
4
0.8
9.55
80°
Φ4.5*0.9*10.7*80°
4.5
4.5
0.9
10.7
80°
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图6)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图7)

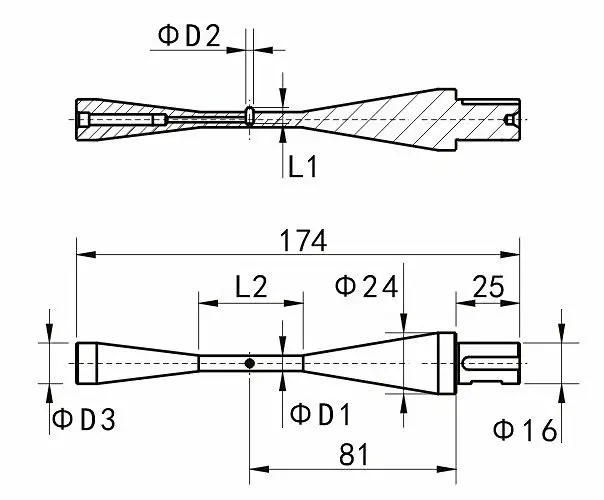

Order No.
Dimension(mm)
D1
D2
D3
L1
L2
N4
4
2
16
4.06
35
N6
4.5
2.5
16
5.22
35
N8
5
3
16
5.5
37
N9
6
3
16
6
37
N10
6
3.2
16
6.8
41
N12
7.3
4
16
8
56
N13
8
4.5
16
9
56
N14
8.8
5
16
9.5
56
N16
10.4
5
18
11
65
N18
12
6
18
12
65
N20
13.5
6
18
14
65
N22
15.2
6
20
16
66
Details Images
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图8)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图9)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图10)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图11)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图12)
Recommend Products
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图13)

Carbide PCD Notching Tool Holder

Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图14)

Carbide PCD Notching Tool Support Block

Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图15)

RNMN/RNGN CBN inserts

Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图16)

RCM(G)X-V CBN inserts

Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图17)

RCM(G)X-Y CBN inserts

Company Profile
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图18)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图19)
Certifications
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图20)
Pakistan India Hot Products Carbide PCD Notching Tools for Milling HSS Rolls Carbide Rolls(图21)
FAQ
Q：How about the payment methods?A:1)Recommending:Trade Assurance online order. It is the most safety way for your payment and goods delivery.Supporting:TT, L/C,E-CHECKING,PAY LATER and so on. 2) TT by Proforma Invoice with Bank details.

3)Paypal and Western Union.

Q：Can you offer the sample firstly?

A:Yes, we can provide the best quality samples for you to test for free, but the shipping cost is borne by the buyer.

Q：How long is your delivery time?

A:For samples, it usually takes 2-3 days, for bulk order quantity, we will give you the exact time according to your specific order quantity.

Q：Can you supply non-standard cutting tools/PDC cutter/etc?

A:Of course, we can provide you with tailor-made services according to your specific requirements.

Q：Can we get the after-sale service?

A:Yes,we have professional after-sale service for you,including sample changes,product problem solving solution,prompt feedback online service,etc

Any other question, kindly feel free to let me know.
