Zhengzhou Huamin Superhard Materials Co.. Ltd.

RCMX 0606 0907 RCGX 1207 Solid CBN Inserts Turning High Hardness Rolls RCGX 1510 CNC Turning Inserts

High-speed steel rolls, cast iron rolls, and carbide rolls can be roughed and finished with solid CBN tools. Huamin has solid CBN inserts RNMN0604*0903*0904*0907*1204*1207*1507*1907*2008*2010, RNGN0604*0903*0904*0907*1204*1207*1507*1907*2008*2010, RCMN0907*1207*1507*1907,RCGN0907*1207*1507*1907, SNMN0903*0904*1204*1207*1507*2010, RCGX0604*0606*0907*1207*1510*1910*2012, RCMX0604*0606*0907*1207*1510*1910*2012, CNMN0904*1204*1207 GB models, available from stock.

If there is no model you need above, you can contact customer service to provide you with one-to-one service.

Product Description

RCMX 0606 0907 RCGX 1207 Solid CBN Inserts Turning High Hardness Rolls RCGX 1510 CNC Turning Inserts(图1)

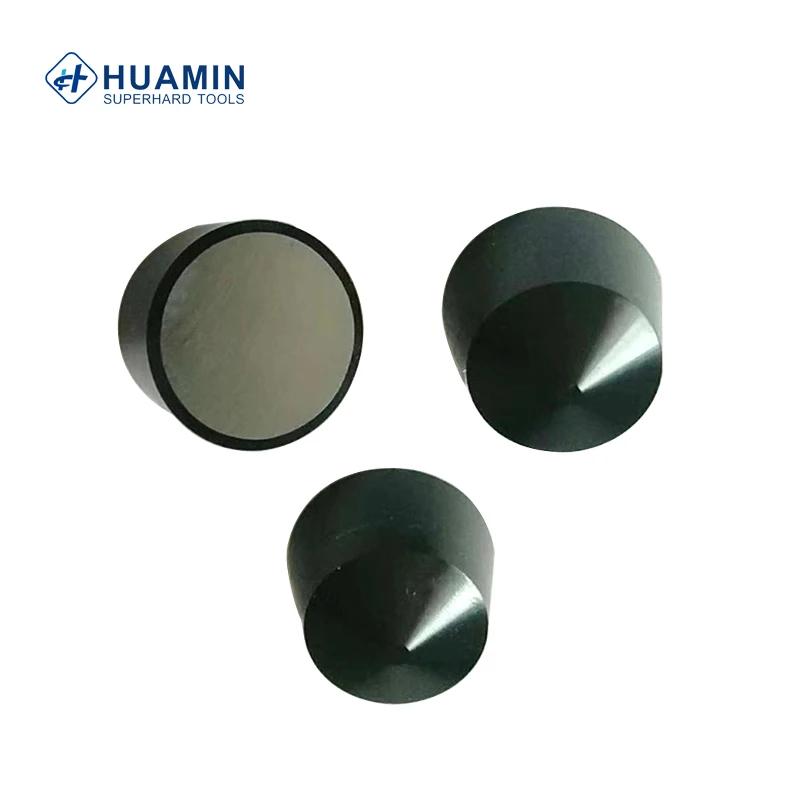

Product Name	Solid cbn inserts
Main Ingredient	cubic boron nitride
Processing procedure	Roughing and finishing are available
machining workpiece	roll
Processing part	outer circle, groove
Advantage	Wear-resistant, long life, high efficiency
Common models	SNMN,RNMN,RCGX-V,RCGX-Y,RCMN,CNMN
Package	10pcs/box

Product Paramenters

RCMX 0606 0907 RCGX 1207 Solid CBN Inserts Turning High Hardness Rolls RCGX 1510 CNC Turning Inserts(图2)

RCMX 0606 0907 RCGX 1207 Solid CBN Inserts Turning High Hardness Rolls RCGX 1510 CNC Turning Inserts(图3)

Using Effects

HUAMIN CBN inserts can turn high speed steel rolls, cast iron rolls, high boron steel rolls, carbide rolls, rough and finish outer circles, grooves. compared with carbide inserts, can be processed at high speed, and the efficiency is increased by N times. Compared with other brands of CBN inserts, it has a longer life and higher durability.

For high hardness rolls, Huamin mainly recommends RNMN (RNGN), RCMX (RCGX)-Y/V, SNMN, CNMN solid CBN inserts.
