Full face PCD rngn120400/1203 Milling aluminum alloy material cylinder head PCD insert tools RNMN

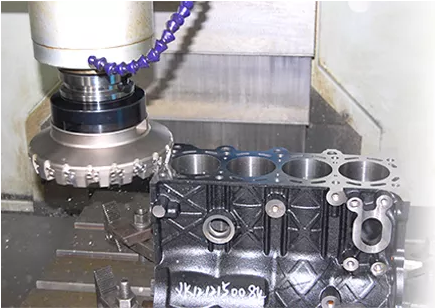

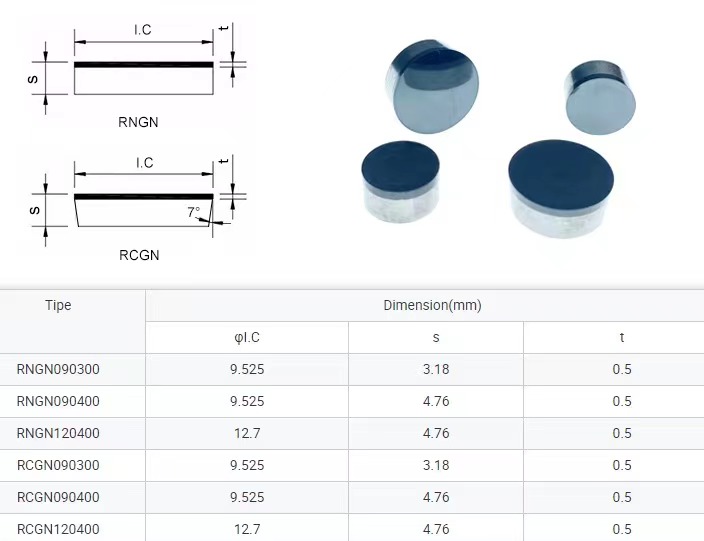

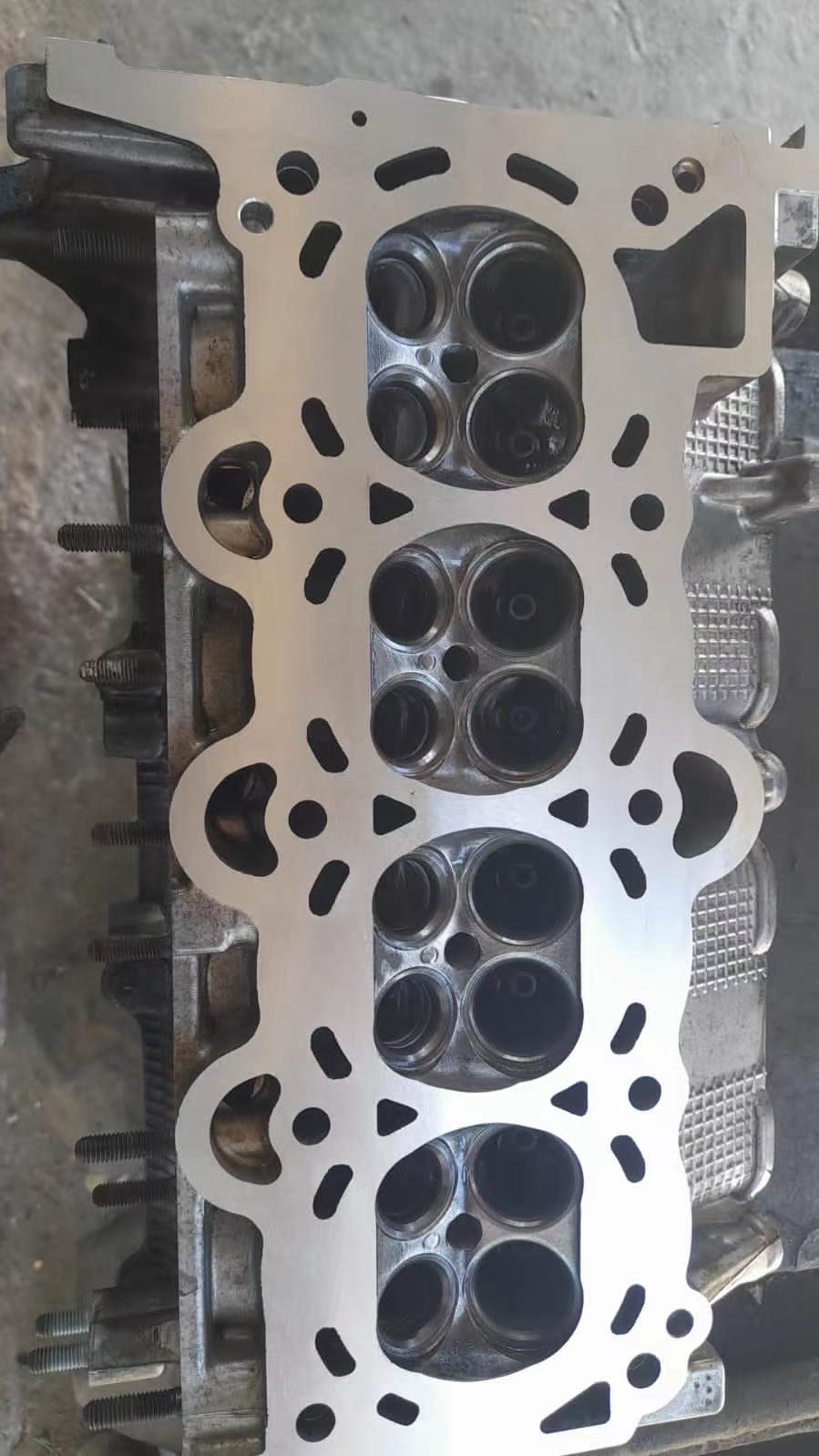

For the aluminum alloy engine cylinder head RNGN090300, RNGN090400, RNGN120400, RCGN090300, RCGN090400, RCGN120400, full-veneer composite PCD milling inserts, which can not only ensure stable machining results, but also have sharp edges under high-speed cutting conditions. , to meet the high-gloss and high-brightness requirements of aluminum alloy high-motivation cylinder heads
Material of Products | |||||||
Polycrystalline diamond(PCD) | Cubic boron nitride(CBN) | ||||||
Materials suitable for processing | PCD: Aluminum and aluminum alloy; copper and steel alloy; cemented carbide; non-ferrous metals like titanium, magnesium, zinc and plumbum; nonmetal like fiberglass, carbon fiber and reinforced plastics. | ||||||
CBN: Ferrous metal; quenched steel; ball bearing steel(60-62HRC); high-speed steel(>62HRC); tool steel(57-60HRC); rough turning and finish turning of chilled cast iron; high temperature alloy; thermal spraying material; cemented carbide containing more than 10% Co; High speed cutting. | |||||||
Recommended Diamond Tool Materials and Processing Parameters | |||||||
Classification | Material | Hardness | (m/min) Cutting Speed
| (mm/rev) Feed rate
| (mm) Cutting Depth
| ||
PCD | Aluminum | 200-3000 | 0.05-0.5 | 0.05-1.0 | |||
Nonmetal | 100-500 | 0.05-0.5 | 0.05-1.0 | ||||
Cemented carbide | 20-30 | 0.05-0.2 | 0.05-0.2 | ||||

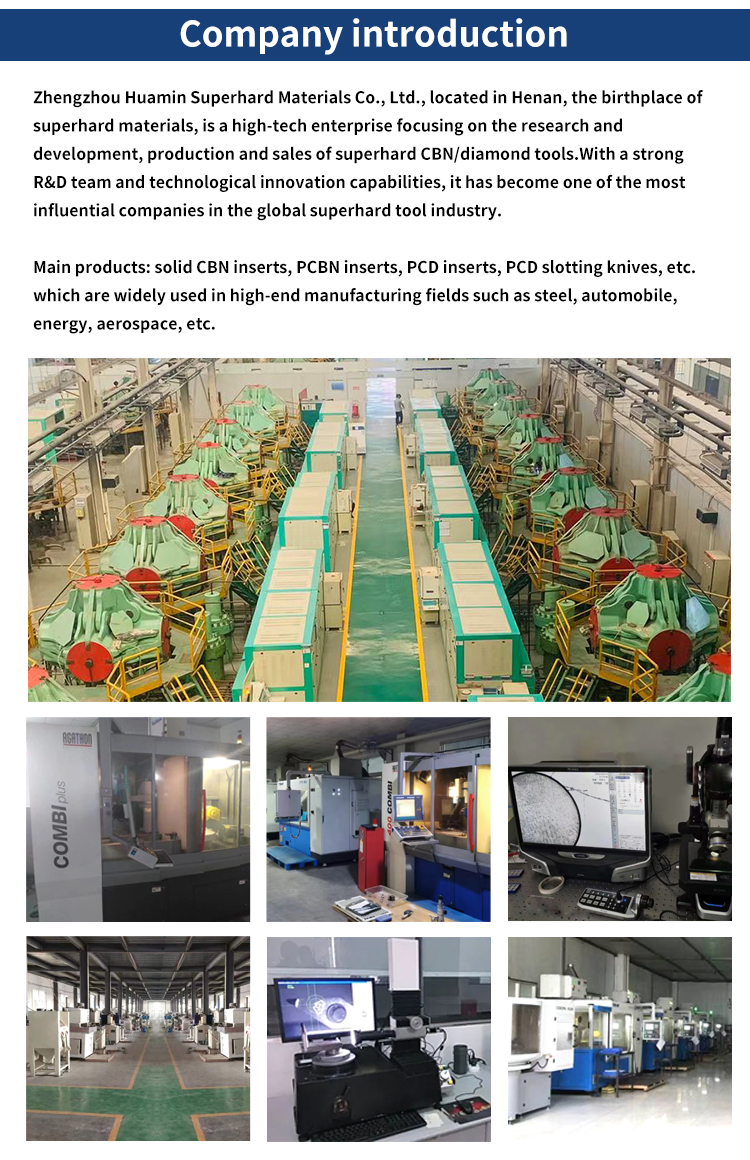

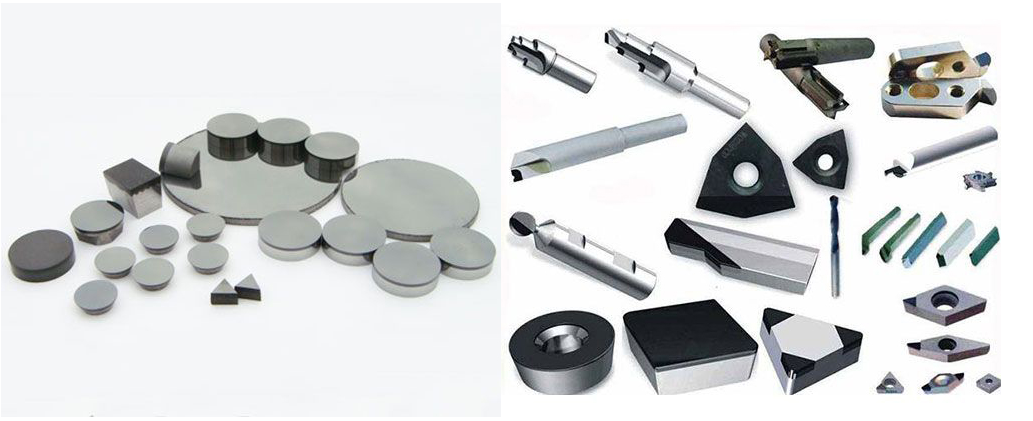

Huamin Superhard Zhengzhou, Henan, the capital of superhard materials in China, has been focusing on the production, sales and research of precision machining tools for more than 10 years. The company's main products include: Carbide notching tool, CBN notching tool, PCD notching tool, integral CBN tool, welded CBN tool, and tipped composite PCBN Tools, precision machining tools, etc. Products HJ60, HJ80, HJ63, HJ33, CY6 and other series have unique advantages in hardened materials, high hardness cast iron materials and other difficult-to-machine materials. Typical parts include: high speed steel rolls, high boron steel rolls, alloy cast iron rolls, gears, brake drums, flywheel clutch pressure plates, bearings, engines, cylinder liners, gearboxes, lead screws, wind power bearings, slurry pumps, etc. , the company has passed ISO9001 and other quality certifications, and has reached cooperation with many well-known domestic, and its products are exported to Germany, Italy, South Africa, South Korea, Southeast Asia and so on.
FAQ
1,How about the payment methods?
1)Recommending:Trade Assurance online order.
It is the most safety way for your payment and goods delivery.Supporting:TT, L/C,E-CHECKING,PAY LATER and so on.
2) TT by Proforma Invoice with Bank details.
3)Paypal and Western Union.
2,Can you offer the sample firstly?
Yes, we can provide the best quality samples for you to test for free, but the shipping cost is borne by the buyer.
3,How long is your delivery time?
For samples, it usually takes 2-3 days, for bulk order quantity, we will give you the exact time according to your specific order quantity.
4,Can you supply non-standard cutting tools/PDC cutter/etc
A:Of course, we can provide you with tailor-made services according to your specific requirements.
5,Can we get the after-sale service?
A:Yes,we have professional after-sale service for you,including sample changes,product problem solving solution,prompt feedback online service,etc
Any other question, kindly feel free to let me know.
