The tool holder is the connection between the mechanical spindle and the tool and other accessories. Huamin provides BT tool holders, HSK tool holders, hydraulic tool holders, traditional tool holders, thermal expansion tool holders, etc., and sells accessories such as collets. Tool holder clamping tool: milling cutter, drill bit, reamer, tap, etc.; Supporting equipment for tool holders: milling, drilling, tapping and other CNC, engraving machines and other equipment. Common BT handle specifications: BT30, BT40, BT50 Tool holder supporting collet type: ER series, elastic collet, strong collet, pull-back collet, hydraulic collet, etc., ER collet size for BT handle: ER8, ER11, ER16, ER20, ER25, ER32, ER40, ER50

Product Description

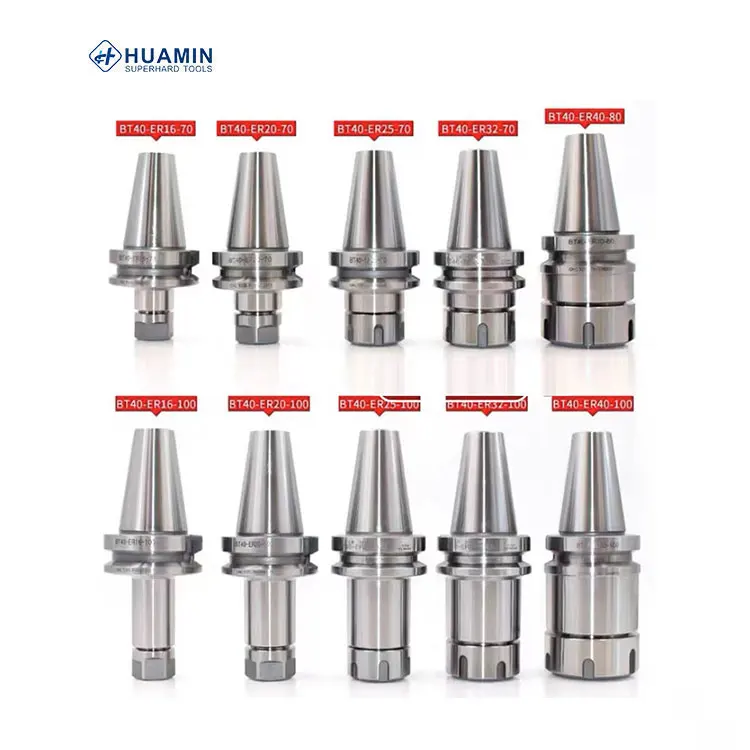

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图1)

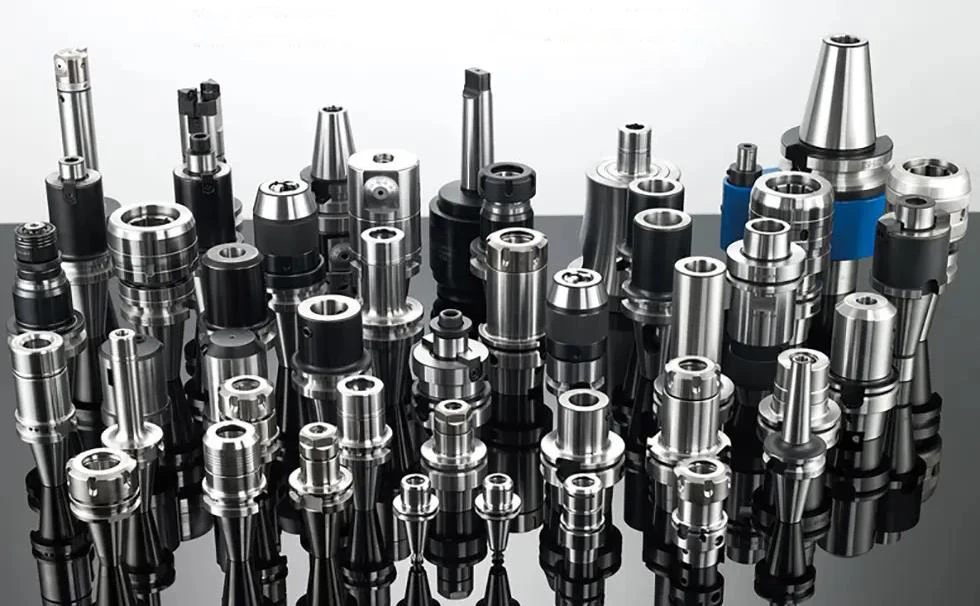

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图2)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图3)

Product Name	Tool Holder
Material	40Cr/42CrMo/20CrMnTi
Size	BT30/40/50;HSK63/50/100/40
ER Collet size:	ER8,ER11,ER16,ER20,ER25,ER32,ER40,ER50
Accuracy	0.005-0.008mm
custom made	Yse
Package	1pcs/box

Product Paramenters

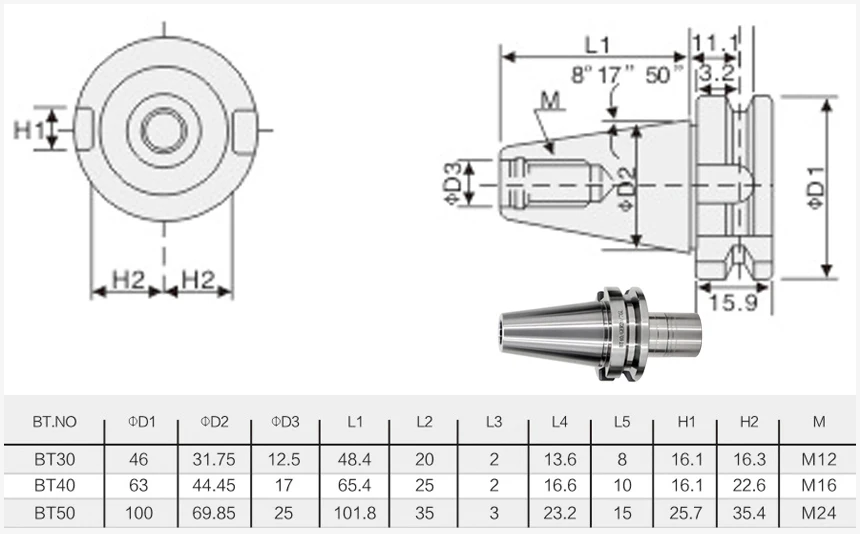

BT holder size

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图4)

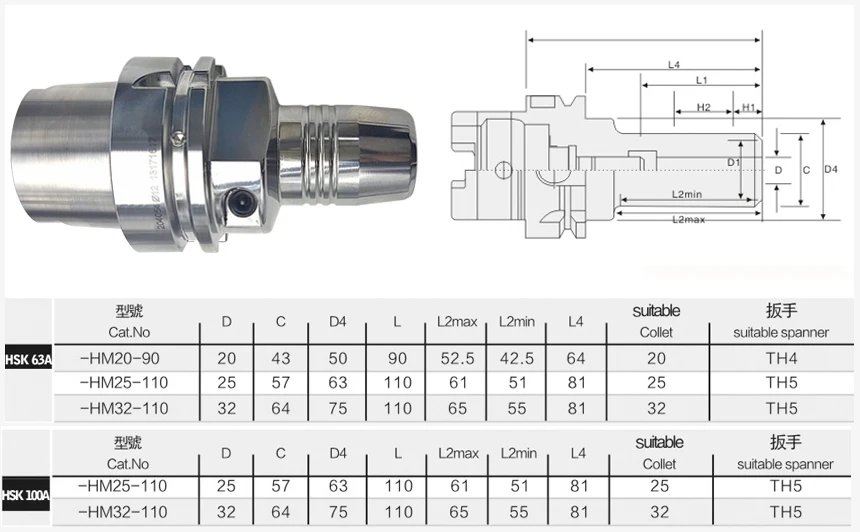

HSK holder size

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图5)

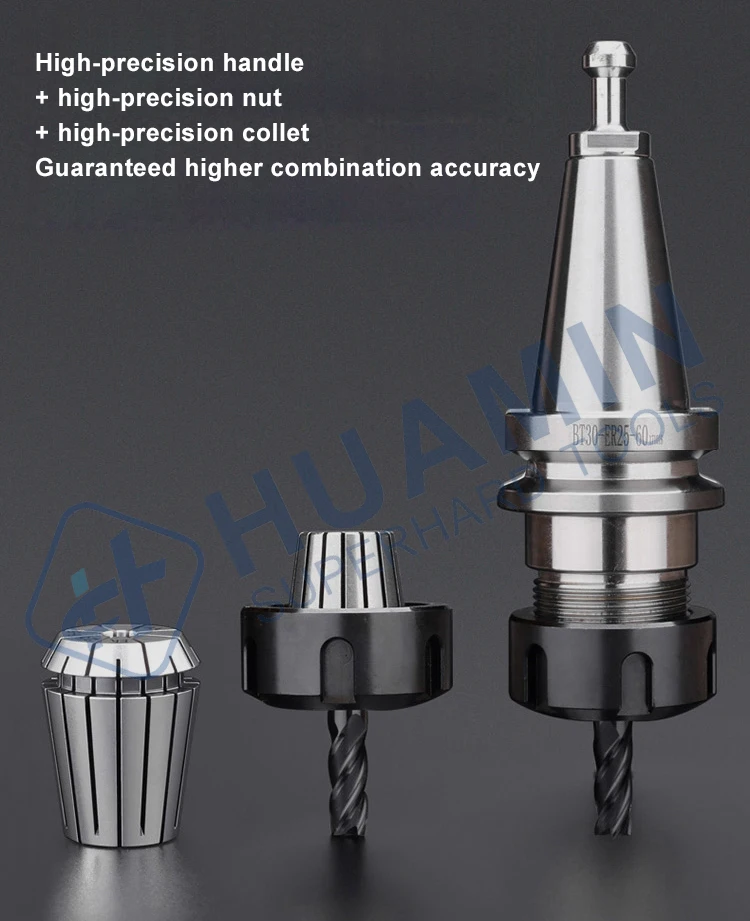

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图6)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图7)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图8)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图9)

Supporting parts

Commonly used parts for tool handles include collets and wrenches. There is a wrench inside the tool handle, and collets need to be ordered separately.

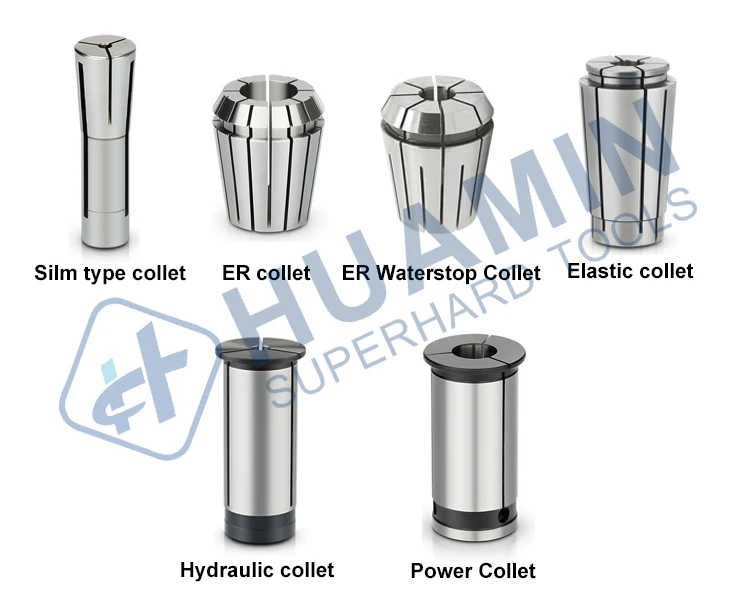

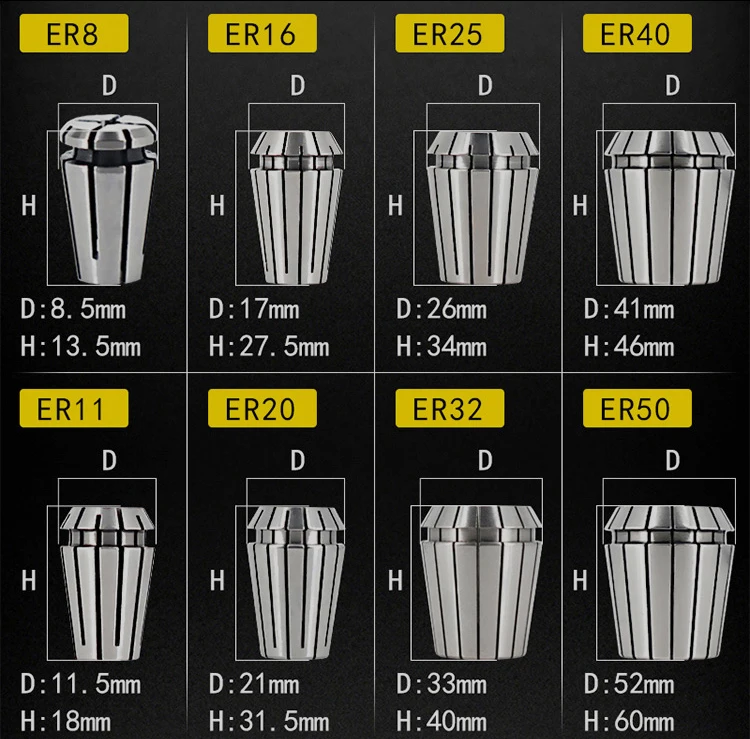

Collets include ER collets, hydraulic collets, powerful collets, pull-back collets and other structures, and the size of ER collets is shown below.

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图10)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图11)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图12)

Equipment

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图13)

Company Profile

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图14)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图15)

Certifications

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图16)

BT50 BT40 Tool Holders BT50 ER Collet Chucks BT30 Bt40 BT50 End Mill Holders Tool Holder Americas B(图17)

FAQ

Q：How about the payment methods?A:1)Recommending:Trade Assurance online order. It is the most safety way for your payment and goods delivery.Supporting:TT, L/C,E-CHECKING,PAY LATER and so on. 2) TT by Proforma Invoice with Bank details. 3)Paypal and Western Union.Q：Can you offer the sample firstly?A:Yes, we can provide the best quality samples for you to test for free, but the shipping cost is borne by the buyer.Q：How long is your delivery time?A:For samples, it usually takes 2-3 days, for bulk order quantity, we will give you the exact time according to your specific order quantity.Q：Can you supply non-standard cutting tools/PDC cutter/etc?A:Of course, we can provide you with tailor-made services according to your specific requirements.Q：Can we get the after-sale service?A:Yes,we have professional after-sale service for you,including sample changes,product problem solving solution,prompt feedback online service,etcAny other question, kindly feel free to let me know.
